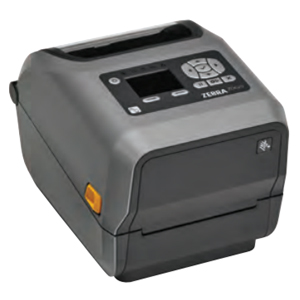

Zebra ZD620t Thermal Printer Ribbons - Wax, Wax/Resin & Resin

Zebra ZD620t ribbons & labels – Wax, wax-resin, resin options. OEM quality, lowest prices & same-day shipping.

Zebra ZD620t Thermal Printer Datasheet
Ink Side
Coated side out (CSO)
Printer Technology
direct-thermal
thermal-transfer
Media Characteristics
Media Core
1" Core
Media O.D.
5.00
Ribbon Characteristics
Ribbon Width Range
1.33" ~ 4.30" (33.8mm ~ 109.2mm)
Ribbon Length
74
Ribbon Core
1" Core
Ribbon O.D.
1.34

Thermal Transfer Ribbon Supplies for Zebra ZD620t Thermal Printer Printer

Wolfbarco offers four grades thermal transfer ribbons, general purpose wax, premium wax, wax/resin and resin. It is critical to choose the appropriate grade of ribbon for your printing needs.

Label

Direct Thermal Label
4000 pcs 4" x 6" Fanfold Direct Thermal White, 1 label per fold, 500 Labels / Stack, 8 Stacks / Box
$52.98 $26.49/roll
Thermal Transfer Label
4" x 6" Thermal Transfer Label, Fanfold, 2 labels / fold, 2000 label / stack, 2 stack / box
$50.56 $25.28/roll
Thermal Transfer Label
4“ x 4" blank thermal transfer label, round corner, fanfold, 2 cross, 1 perf every 2 labels, 2000 labels per stack, 3 stacks per box
$59.45 $19.82/roll
Thermal Transfer Label
4 x 4" blank thermal transfer label, white, round corner, fanfold, 2 cross
$60.41 $20.14/roll

Ribbon

Tire Label
Permanent Adhesive Tire Label
$314.70
Tire Label
Permanent Adhesive Tire Label with print
$360.00 $360.00/roll

FAQ for Zebra ZD620t Thermal Printer Ribbons

What ribbon sizes are compatible with Zebra ZD620t?

The Zebra ZD620t accepts ribbon widths from 1.33" ~ 4.30" (33.8mm ~ 109.2mm). Standard lengths include 74 meters. Choose a ribbon at least 0.5" wider than your labels for optimal coverage.

What types of ribbons work with Zebra ZD620t?

The Zebra ZD620t supports three ribbon types:

  • Wax: Most economical. Best for paper labels and indoor use.
  • Wax-Resin: Better durability and scratch resistance. Good for synthetic labels.
  • Resin: Maximum durability for harsh environments and polyester labels.

Choose based on your label material and durability needs.

How do I calibrate the Zebra ZD620t?

If your Zebra ZD620t is skipping labels or printing incorrectly, calibration is needed:

  1. Turn off the printer
  2. Press and hold FEED button while turning on
  3. Wait for the status light to flash
  4. Release - the printer will feed labels to calibrate

This teaches the printer to detect label size and gaps. Calibrate when changing label sizes.
