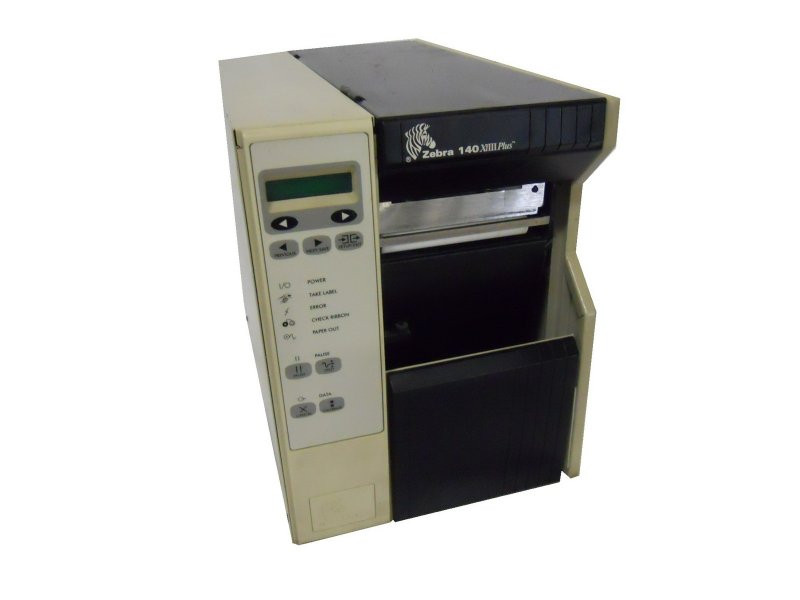

Zebra 140XiIIIPlus Thermal Printer Ribbons - Wax, Wax/Resin & Resin

Complete line of Zebra 140XiIIIPlus thermal transfer ribbons, including Wax, resin-enhanced wax, wax-resin, resin options, and compatible labels with OEM quality, lowest prices & same-day shipping.

Zebra 140XiIIIPlus Thermal Printer Datasheet
Ink Side
Coated side out (CSO)
Printer Technology
direct-thermal
thermal-transfer
Media Characteristics
Media Core
3" Core
Media O.D.
8.00
Ribbon Characteristics
Ribbon Width Range
1.57" ~ 5.1" (44mm ~ 140mm)
Ribbon Length (feet)
450
Ribbon Core
1" Core
Ribbon O.D.
3.20

Thermal Transfer Ribbon Supplies for Zebra 140XiIIIPlus Thermal Printer Printer

Wolfbarco offers four grades thermal transfer ribbons, general purpose wax, premium wax, wax/resin and resin. It is critical to choose the appropriate grade of ribbon for your printing needs.

Ribbon

General Purpose Wax
ZE040-0450AO 1.57" x 1476' (40 mm x 450 m) Thermal Transfer General Purpose Wax Ribbon
Ink Side: Outside
Core Size: 1"
$79.82 $2.22/roll
Standard Wax/Resin
ZE040-0450DO 1.57" x 1476' (40 mm x 450 m) Premium Wax/Resin Thermal Transfer Ribbon
Ink Side: Outside
Core Size: 1"
$82.77 $2.30/roll
General Purpose Wax
ZE060-0450AO 2.36" x 1476' (60 mm x 450 m) Thermal Transfer General Purpose Wax Ribbon
Ink Side: Outside
Core Size: 1"
$119.98 $3.33/roll
Resin-Enhanced Wax
ZE060-0450IO 2.36" x 1476' (60 mm x 450 m) Premium Resin Enhanced Wax Thermal Transfer Ribbon
Ink Side: Outside
Core Size: 1"
$172.71 $4.80/roll
Standard Wax/Resin
ZE060-0450DO 2.36" x 1476' (60 mm x 450 m) Premium Wax/Resin Thermal Transfer Ribbon
Ink Side: Outside
Core Size: 1"
$345.27 $9.59/roll
Standard Resin
ZE060-0450VO 2.36" x 1476' (60 mm x 450 m) Premium Thermal Transfer High Speed Resin Ribbon
Ink Side: Outside
Core Size: 1"
$535.23 $14.87/roll
General Purpose Wax
ZE102-0450AO 4.02" x 1476' (102 mm x 450 m) Thermal Transfer General Purpose Wax Ribbon
Ink Side: Outside
Core Size: 1"
$136.24 $5.68/roll
General Purpose Wax
4.33" x 1476' (110 mm x 450 m) Thermal Transfer General Purpose Wax Ribbon
Ink Side: Outside
Core Size: 1"
$95.43 $3.98/roll
Resin-Enhanced Wax
4.33" x 1476' (110 mm x 450 m) Premium Resin Enhanced Wax Thermal Transfer Ribbon
Ink Side: Outside
Core Size: 1"
$242.64 $7.58/roll
Standard Wax/Resin
4.33" x 1476' (110 mm x 450 m) Premium Wax/Resin Thermal Transfer Ribbon
Ink Side: Outside
Core Size: 1"
$422.33 $17.60/roll

FAQ for Zebra 140XiIIIPlus Thermal Printer Ribbons

What ribbon sizes are compatible with Zebra 140XiIIIPlus?

The Zebra 140XiIIIPlus accepts ribbon widths from 1.57" ~ 5.1" (44mm ~ 140mm). Standard lengths include 450 meters. Choose a ribbon at least 0.5" wider than your labels for optimal coverage.

What types of ribbons work with Zebra 140XiIIIPlus?

The Zebra 140XiIIIPlus supports four ribbon types:

  • Wax: Most economical. Best for paper labels and indoor use.
  • Resin-Enhanced Wax: Moisture-resistant for longer-lasting prints with better resistance to abrasion. Can print on both paper and synthetic material.
  • Wax-Resin: Better durability and scratch resistance. Good for synthetic labels.
  • Resin: Maximum durability for harsh environments and polyester labels.

Choose based on your label material and durability needs.

How do I calibrate the Zebra 140XiIIIPlus?

If your Zebra 140XiIIIPlus is skipping labels or printing incorrectly, calibration is needed:

  1. Turn off the printer
  2. Press and hold FEED button while turning on
  3. Wait for the status light to flash
  4. Release - the printer will feed labels to calibrate

This teaches the printer to detect label size and gaps. Calibrate when changing label sizes.

I am unsure what to choose.

Contact us for help selecting the best compatible ribbon for your print application. Please let us know the following information so we can provide an informed answer.

  • Printer brand and model
  • How will the label be used, indoor or outdoor?
  • Exposure to extreme environments, such as freezing temperature, oil and chemicals?
